Joints and sealants are essential components in the design and implementation of concrete structures. Proper joint sealing helps control cracking and allows concrete to adapt to environmental changes. Sealants are crucial for protecting these joints from the ingress of water and chemicals. Among the most commonly used sealant materials is polyurethane, which is widely applied in various construction and industrial projects due to its superior mechanical and chemical properties.
This article expands on ACI 504R guidelines to provide a comprehensive analysis of the performance, types, applications, and best practices related to polyurethane sealants.
Concrete and Its Vulnerability
Concrete is one of the most widely used construction materials due to its high compressive strength, long service life, and adaptability for use in a wide range of structures. However, because of its brittle nature and low flexibility, concrete is prone to damage from internal stresses caused by temperature changes, repeated loading, and shrinkage or expansion. Cracking not only affects the durability and performance of concrete but also provides pathways for moisture, corrosive ions, and other deteriorating agents to penetrate the structure.
The Importance of Joints and Sealants in Concrete Structures
Proper design and implementation of joints, along with effective use of sealants, play a key role in addressing these challenges. This article examines the significance of joints and sealants, their types, the characteristics of polyurethane-based sealants, and various sealant formulations according to ACI 504R—a key reference for the design, installation, and maintenance of joints and sealants.
Why Joints Are Necessary in Concrete Structures
Joints are intentionally placed in concrete structures to manage stress, prevent cracking, and accommodate thermal and mechanical movements. The main reasons for installing joints include:
1. Controlling Shrinkage Cracks
Drying shrinkage in concrete can lead to random, uncontrolled cracking. Contraction joints act as pre-planned paths for cracks, limiting their spread throughout the structure.
2. Reducing Stress Concentration
Large concrete elements such as storage tanks, retaining walls, and industrial floors experience significant stress. Expansion joints reduce these stresses by providing space for expansion and contraction.
3. Structural Flexibility
In seismic zones or regions with high temperature fluctuations, joints allow the structure to accommodate slight deformations, preventing destructive cracks.
4. Preventing Chemical Ingress
Concrete structures exposed to water or aggressive chemicals require protection. Sealants prevent these substances from penetrating and damaging concrete and reinforcing steel.
Types of Joints in Concrete
1. Contraction Joints
Designed to manage cracks due to shrinkage, typically implemented as surface grooves or pre-formed inserts. According to ACI 504R, spacing should not exceed 24 to 36 times the slab thickness.

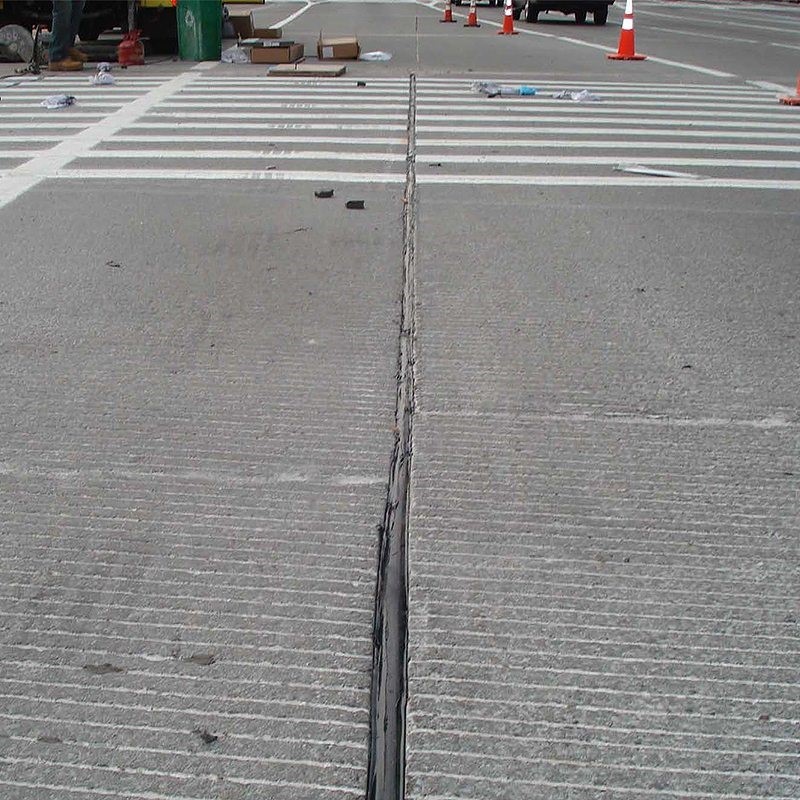

2. Expansion Joints
Allow for thermal movement and prevent cracking caused by expansion. These joints usually contain compressible fillers with high deformability.
3. Construction Joints
Formed at stopping points in concrete placement, these joints maintain structural continuity through mechanical connectors like dowel bars or key joints.
Sealants (Mastics): Role and Function
Sealants are flexible and resistant materials used to fill joints and protect them from water, moisture, and harmful chemicals. Their main functions include:
1. Waterproofing
Sealants—especially in structures exposed to water or chemicals—prevent moisture ingress. Common materials include polyurethane mastic, silicone, and polysulfide.
2. Flexibility and Movement Tolerance
High flexibility enables sealants to accommodate dimensional changes due to concrete expansion and contraction without cracking.
3. Joint Protection and Structural Longevity
By blocking solid particles, dust, and corrosive agents, sealants reduce damage and extend the life and performance of the structure.
Types of Sealants and Their Base Formulations
Sealants vary based on chemical composition and performance properties. Each type is suited for specific environmental and structural conditions.
1. Bituminous (Asphalt-Based) Sealants
Cost-effective, suitable for low-stress applications, but less resistant to temperature variations. Abadgaran Chemical Industries produces high-quality bituminous sealants.
2. Silicone Sealants
Highly flexible and UV-resistant, ideal for exterior use and harsh environmental conditions.
3. Polyurethane Sealants
Popular due to excellent mechanical and chemical performance, strong adhesion to concrete, metal, and glass, and resistance to chemicals and temperature changes.
4. Epoxy Sealants
Hard and highly resistant, used where mechanical strength is essential. Abadgaran offers a highly durable epoxy-based joint filler known as chemical-resistant joint mortar.
Introduction to Polyurethane Sealants
Polyurethanes are elastomeric compounds widely used in construction due to their superior mechanical and chemical properties.
Advantages:
Types of Polyurethane Sealants

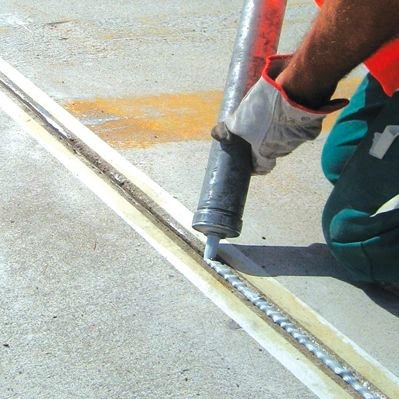

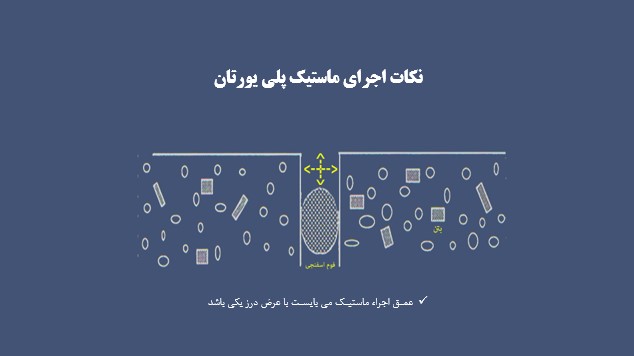

Installation Guidelines per ACI 504R
Challenges and Solutions in Using Polyurethane Sealants
Conclusion
Designing joints and using sealants in concrete structures is critical to structural durability and performance. Polyurethane sealants stand out as an excellent choice due to their bonding strength, flexibility, and resistance to environmental and chemical factors. Adhering to standards like ACI 504R and selecting the right product type ensures long-lasting protection and functionality.
Source: ACI 504R
